Phylogeny in Few Species of Leguminosae Family Based on matK Sequence

Sagar Patel , Dipti B. Shah
G. H. Patel Post Graduate Department of Computer Science and Technology, Sardar Patel University, Vallabh Vidyanagar, Gujarat-388120, India
Author    Correspondence author
Computational Molecular Biology, 2014, Vol. 4, No. 6   doi: 10.5376/cmb.2014.04.0006
Received: 21 Feb., 2014    Accepted: 30 Jun., 2014    Published: 17 Jul., 2014
© 2014 BioPublisher Publishing Platform
This is an open access article published under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Preferred citation for this article:

Patel and Shah, 2014, Phylogeny in Few Species of Leguminosae Family Based on matK Sequence, Computational Molecular Biology, Vol.4, No.6 1-5 (doi: 10.5376/cmb.2014.04.0006)

Abstract

In this paper, few species of Leguminosae family considered for phylogenetically analyses which are found in Gujarat state in India and matK gene sequence data from NCBI database are considered for evolutionary analysis. The sequence data of the matK gene are more accurate than rbcL sequence data in the reconstruction of phylogenies throughout the seed plants. Leguminosae family is one of the largest families that contain thousands of species of Plants, Herbs, Shrubs and Trees worldwide. This study shows that species of Leguminosae family which is further classified into Fabaceae (Papilionaceae), Mimosaceae and Caesalpiniaceae; based on morphological characters has different members and the based on the DNA and protein matK sequence data analysis, few species are not related with each other as per morphological classification. We conclude that few species are related with each other as per botanical or morphological classification of Leguminosae family but evolutionary results shows that based on DNA and protein matK sequence data some species are not related with morphological or taxonomical classification.

Keywords
Leguminosae family; Bioinformatics; NCBI; matK

1 Introduction
Leguminosae family contains species of Plants, Herbs, Shrubs, and Trees. Legumes are used as crops, forages and green manures; they also synthesize a wide range of natural products such as flavours, drugs, poisons and dyes. The legume family is the third largest family of angiosperms (Mabberley, 1997) with approximately 730 genera and over 19,400 species worldwide (Lewis et al., in press). Legumes are able to convert atmospheric nitrogen into nitrogenous compounds useful to plants. This is achieved by the presence of root nodules containing bacteria of the genus Rhizobium. These bacteria have a symbiotic relationship with Legumes, fixing free nitrogen for the plants; in return legumes supply the bacteria with a source of fixed carbon produced by photosynthesis. The predilection of legumes for semi-arid to arid habitats is related to a nitrogen-demanding metabolism, which is thought to be an adaptation to climatically variable or unpredictable habitats whereby leaves can be produced economically and opportunistically (McKey, 1994), (Wojciechowski et al). Leguminosae family is further classified into three subfamilies; Fabaceae (Papilionaceae), Caesalpiniaceae and Mimosaceae (http://en.wikipedia.org).

1.1 matK gene
The matK gene, formerly known as orfK, is emerging as yet another gene with potential contributions to plant molecular systematics and evolution (Johnson and Soltis, 1994, 1995; Steele and Vilgalys, 1994; Liang and Hilu, 1996; Gadek et al., in press). The gene, ~1500 base pairs (bp), is located within the intron of the chloroplast gene trnK, on the large single-copy section adjacent to the inverted repeat (Figure 1). Further, the molecular information generated from matK has been used to resolve phylogenetic relationships from shallow to deep taxonomic levels (Johnson and Soltis, 1994; Hayashi and Kawano, 2000; Hilu et al., 2003; Cameron, 2005).

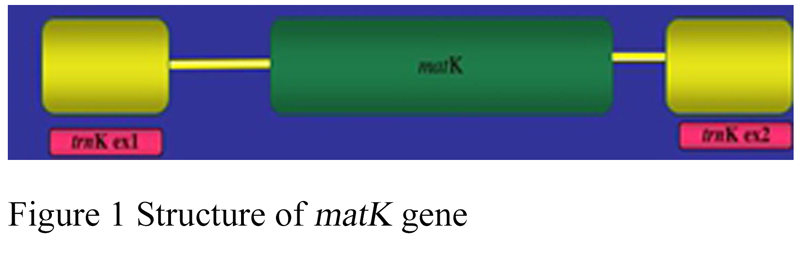

Figure 1 Structure of matK gene


1.2 NCBI (The National Center for Biotechnology Information)
The National Center for Biotechnology Information (NCBI) is part of the United States National Library of Medicine (NLM), a branch of the National Institutes of Health. The NCBI houses a series of databases relevant to biotechnology and biomedicine. Major databases include GenBank for DNA sequences, Protein, Genome, EST etc. All these databases are available online through the Entrez search engine (http://www.ncbi.nlm.nih.gov).

1.3 DNA (Deoxyribonucleic acid)/Nucleotide
The Deoxyribonucleic acid (DNA) is a molecule that encodes the genetic instructions used in the development and functioning of all known living organisms and many viruses (http://en.wikipedia.org). Genetic information is encoded as a sequence of nucleotides (guanine, adenine, thymine, and cytosine) recorded using the letters G, A, T, and C. Most DNA molecules are double-stranded helices, consisting of two long polymers of simple units called nucleotides, molecules with backbones made of alternating sugars (deoxyribose) and phosphate groups (related to phosphoric acid), with the nucleobases (G, A, T, C) attached to the sugars (http://www.ncbi.nlm.nih.gov/nuccore/).

1.4 Protein
Proteins are large biological molecules consisting of one or more chains of amino acids. Proteins perform a vast array of functions within living organisms, including catalyzing metabolic reactions, replicating DNA, responding to stimuli, and transporting molecules from one location to another (http://en.wikipedia.org). Proteins differ from one another primarily in their sequence of amino acids, which is dictated by the nucleotide sequence of their genes, and which usually results in folding of the protein into a specific three-dimensional structure that determines its activity (http://en.wikipedia.org), (http://www.ncbi.nlm.nih.gov/protein/).

2 Materials and Methods
In this paper we have considered around 266 species which are found in Gujarat state of India (Sagar et al., 2013). Further we searched each species in NCBI database and finally found around 149 species’ information like DNA, Protein and other useful information of Leguminosae family (Sagar et al., 2014). Further we have only considered matK gene sequences of DNA and Protein sequences. Evolutionary analysis done in MEGA software by Maximum Likelihood method (Bootstrap method) (Tamura et al., 2011) as shown in Figure 2.

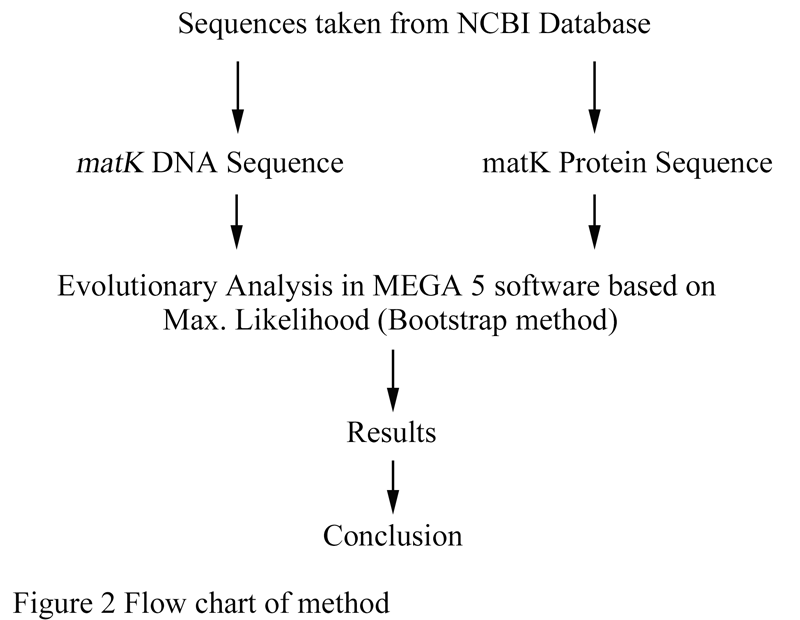

Figure 2 Flow chart of method


3 Results
3.1 Result of DNA matK gene sequences

As shown in above Figure 3 which is result of DNA matK Sequences by Maximum Likelihood method (bootstrap method), starting from top we observed that species are placed in subfamily wise; like first, Fabaceae (Papilionaceae), Mimosaceae followed by Caesalpiniaceae but First and last species is from Fabaceae (Papilionaceae) subfamily, so species of Mimosaceae and Caesalpiniaceae subfamilies are included within Fabaceae (Papilionaceae). Starting from top species of Fabaceae (Papilionaceae) subfamily are present in which species of genus Medicago, Crotoraria, Sesbania, Vigna, Tephrosia, Butea and Trigonella genus are related as per morphological characters or botanical classifications except Medicago lupulina, Vigna radiata, Vigna unguiculata which is distantly related to their respective genus and each species of genus Lathyrus, Vicia and Vigna is distantly related with other species.

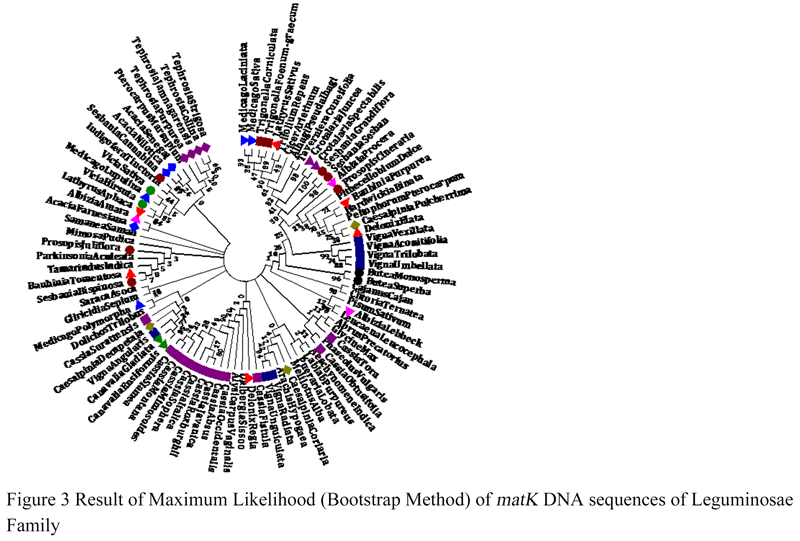

Figure 3 Result of Maximum Likelihood (Bootstrap Method) of matK DNA sequences of Leguminosae Family


After then species of Mimosaceae subfamily are there in which species of genus Albizia and Acacia genus are related as per morphological characters or botanical classifications and species of Prosopis genus are distantly related with each other.

Then after there are species which belongs to Caesalpiniaceae subfamily; in that species of Cassia genus are related as per morphological characters or botanical classifications and species of Caesalpinia, Delonix and Bauhinia genus are distantly related with each other.

3.2 Result of protein matK gene sequences
As shown in Figure 4 which is result of Protein matK Sequences by Maximum Likelihood method (bootstrap method), starting from top we observed that species are placed in subfamily wise; like first, Caesalpiniaceae, Mimosaceae followed by Fabaceae (Papilionaceae). Starting from top, there are species which belongs to Caesalpiniaceae subfamily; in that species of Cassia, Delonix and Bauhinia genus are related as per morphological characters or botanical classifications and species of Caesalpinia genus are distantly related with each other (Figure 4).

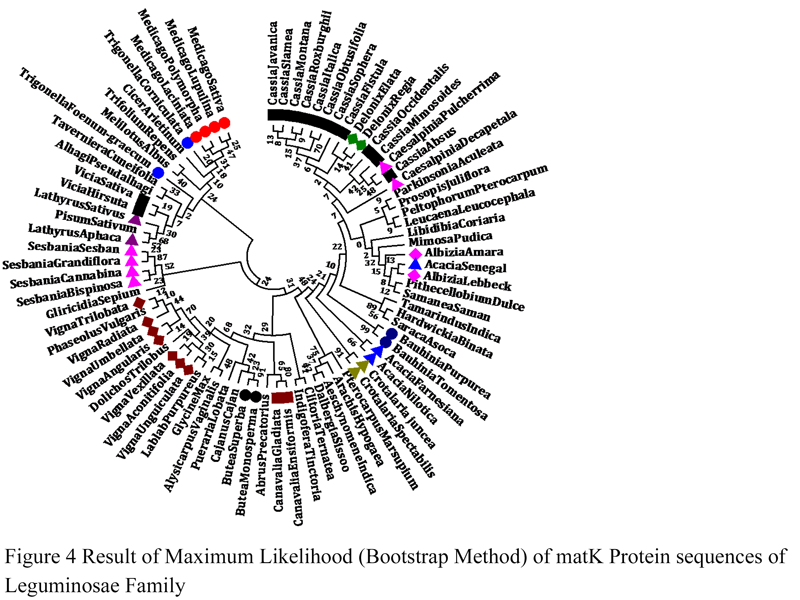

Figure 4 Result of Maximum Likelihood (Bootstrap Method) of matK Protein sequences of Leguminosae Family


After then species of Mimosaceae subfamily are there in which species of genus Albizia and Acacia genus are related as per morphological characters or botanical classifications except Acacia senegal which found between species of Albizia species.

After then species of Fabaceae (Papilionaceae) subfamily are present in which species of genus Medicago, Crotoraria, Canavalia, Sesbania, Tephrosia, Vicia, Butea and few species of Vigna are related as per morphological characters or botanical classification except species of genus Lathyrus and Trigonella are distantly related with their nearby species of same genus.

4 Discussion
In this study we observed that species belongs to Leguminosae Family; which is further classified into Fabaceae (Papilionaceae), Mimosaceae, Caesalpiniaceae are as per the botanical classification classified differently based on their morphological features like species’ flower color, size and shape, types and arrangements of Stipules, size of plant etc. But this study focus on evolutionary relationship of Leguminosae Family species based on DNA & Protein sequences of matK sequences with Multiple sequence alignment by Maximum likelihood where we observed that in matK protein sequences result; some species belonging to same genus are fall very nearly as per botanical classification which is correct as per both botanical and evolutionary relationship but we observed in matK DNA sequence result that it really differs and it is not related with morphologically or botanical classification and further we observed that few species are distantly related even if they are from same genus. Further conserved matK protein sequences could be model and functional annotation may give accurate information regarding to evolution as structural proteins are more accurate in evolution study which gives accurate details regarding to study.

As per literature review we come to know that matK sequences are more accurate than rbcL sequences which are normally used for phylogeny reconstruction and after this analysis we also recommend that matK sequences are more accurate than rbcL gene sequences and we suggest from our study that especially matK protein sequences gives more accurate result on evolutionary or phylogeny study than matK DNA sequences.

Acknowledgement
We would like to thank Sardar Patel University.

References
Cameron K. M., 2005. Leave it to the leaves: a molecular phylogenetic study of Malaxideae (Orchidaceae). American Journal of Botany 92: 1025-1032
http://dx.doi.org/10.3732/ajb.92.6.1025

Ems S. C. Morden C. W. Dixon C. K. Wolfe K. H. dePamphilis C. W. Palmer J. D., 1995. Transcription, splicing and editing of plastid RNAs in the nonphotosynthetic plant Epifagus virginiana. Plant Molecular Biology 29: 721-733
http://dx.doi.org/10.1007/BF00041163

Gadek, P. A., P. G. Wilson, and C. J. Quinn. In press. Phylogenetic reconstruction in Myrtaceae using matK, with particular reference to the position of Psiloxylon and Heteropyxis. Australian Systematic Botany

Harborne, J.B. 1994. Phytochemistry of the Leguminosae. In Phytochemical Dictionary of the Leguminosae, eds Bisby,F.A. et al. London: Chapman & Hall

Hayashi K. Kawano S. 2000. Molecular systematics of Lilium and allied genera (Liliaceae): phylogenetic relationships among Lilium and related genera based on the rbcL and matK gene sequence data. Plant Species Biology 15: 73-93
http://dx.doi.org/10.1046/j.1442-1984.2000.00025.x

Hilu K. W. Borsch T. Müller K. Soltis D. E. Soltis P. S. Savolainen V. Chase M. W. Powell M. P. Alice L. A. Evans R. Sauquet H. Neinhuis C. Slotta T. A. B. Jens G. R. Campbell C. S. Chatrou L. W. 2003. Angiosperm phylogeny based on matK sequence information. American Journal of Botany 90: 1758-1776
http://dx.doi.org/10.3732/ajb.90.12.1758

Hilu KW, Liang H: The matK gene: sequence variation and application in plant systematics. American Journal of Botany 1997, 84:830-839
http://dx.doi.org/10.2307/2445819

Johnson L. A. Soltis D. E. 1994. matK DNA sequences and phylogenetic reconstruction in Saxifragaceae s. str. Systematic Botany 19: 143-156
http://dx.doi.org/10.2307/2419718

Martin F. Wojciechowski,matt Lavin,michael J. Sanderson. A Phylogeny Of Legumes (Leguminosae) Based On Analysis Of The Plastid Matk Gene Resolves Many Well-supported Subclades Within The Family

Michelle M. Barthet, Hilu KW: Expression of matK: functional and evolutionary implications. American Journal of Botany 2007, vol. 94 no. 8 1402-1412
http://dx.doi.org/10.3732/ajb.94.8.1402

Mohr G. Perlman P. S. Lambowitz A. M. 1993. Evolutionary relationships among group II intron-encoded proteins and identification of a conserved domain that may be related to maturase function. Nucleic Acids Research 21: 4991-4997
http://dx.doi.org/10.1093/nar/21.22.4991

Neuhaus H. Link G. 1987. The chloroplast tRNALys (UUU) gene from mustard (Sinapsis alba) contains a class II intron potentially coding for a maturase-related polypeptide. Current Genetics 11: 251-257
http://dx.doi.org/10.1007/BF00355398

Phylogenetic and molecular evolutionary analyses were conducted using MEGA version 5 (Tamura, Peterson, Stecher, Nei, and Kumar 2011)

Sagar Patel, and Hetal Kumar Panchal. 2014, Bioinformatics Information of Leguminosae Family in Gujarat State, International Journal of Agriculture, Environment & Biotechnology 7.1

Sagar Patel, and Hetalkumar Panchal, 2014, Evolutionary studies of few species belonging to Leguminosae family based on RBCL gene. Discovery, 9(22): 38-50

Sagar Patel, Panchal H., 2013, Leguminobase: A Tool To Get Information Of Some Leguminosae Family Members From Ncbi Database in Journal of Advanced Bioinformatics Applications and Research, 4(3): 54-59

Sagar Patel, Panchal H., Anjaria K., 2012, DNA Sequence analysis by ORF FINDER & GENOMATIX Tool: Bioinformatics Analysis of some tree species of Leguminosae Family. Publication Year: 2012, Page(s): 922- 926. Proceedings of the IEEE International Conference on Bioinformatics and Biomedicine (BIBM), Philadelphia, USA

Sagar Patel, Panchal H., Anjaria K., 2012, Phylogenetic analysis of some leguminous trees using CLUSTALW2 Bioinformatics Tool. Publication Year: 2012, Page(s): 917- 921. Proceedings of the IEEE International Conference on Bioinformatics and Biomedicine (BIBM), Philadelphia, USA

Sagar Patel, Panchal H., Smart J., and Anjaria K., 2013. Distribution of Leguminosae family members in Gujarat State of India: Bioinformatics Approach in International Journal of Computer Science and Management Research, 2(4): 2184-2189

Sagar Patel, Panchal H., Smart J., Anjaria K., 2013. Species Information Retrieval Tool: A Bioinformatics tool for Leguminosae family in International Journal of Bioinformatics and Biological Science, 1(2): 187-194 June, 2013 Print ISSN 2319-5169

Smartt, J. and Simmonds, N.W. (eds) 1995. Evolution of Crop Plants. Harlow: Longman Scientific & Technical

Soltis D. E. And Soltis P. S., 2004. Amborella not a “basal angiosperm”? Not so fast. American Journal of Botany 91: 997-1001
http://dx.doi.org/10.3732/ajb.91.6.997

Steele, K. P., AND R. Vilgalys. 1994. Phylogenetic analyses of Polemoniaceae using nucleotide sequences of the Plastid gene matK. Systematic Botany, 19:126-142
http://dx.doi.org/10.2307/2419717

Sugita M. Shinozaki K. Sugiura M., 1985, Tobacco chloroplast tRNALys (UUU) gene contains a 2.5-kilobase-pair intron: an open reading frame and a conserved boundary sequence in the intron. Proceedings of the National Academy of Sciences, USA, 82: 3557-3561

Tamura K., Peterson D., Peterson N., Stecher G., Nei M., and Kumar S., 2011, MEGA5: Molecular Evolutionary Genetics Analysis using Maximum Likelihood, Evolutionary Distance, and Maximum Parsimony Methods. Molecular Biology and Evolution (submitted)
http://dx.doi.org/10.1093/molbev/msr121
