The H⁺-ATPase is the major electrogenic pump in the plasma membrane (PM) of the plant cells. By pumping protons from the cytoplasm to the apoplast it generates an electrochemical proton gradient, which drives the transport of mineral ions and organic solutes, and plays a crucial role in cytoplasmic and apoplastic pH homeostasis. The PM-H⁺-ATPase participates in a variety of physiological processes such as phloem loading, stomata opening, mineral nutrition, growth of root hairs and pollen tubes, salt and osmotolerance, leaf movements, and acid growth (Arango et al., 2003; Sondegaard et al., 2004).

The PM H⁺-ATPases are encoded by a multigene family, and at least 10 isoforms of the H⁺-ATPase in plants (Arango et al., 2003; Baxter et al., 2003). The expression of several members in various species has been examined and shown to have different cell type or tissue specificities, development stage, environmental factors, some times with important overlap (Harper et al., 1994; Michelet et al., 1994; Moriau et al., 1999; Oufattole et al., 2000). Although much progress has been made towards gene cloning and expression analysis of the H⁺-ATPase genes, less information is available concerning the regulation of gene expression by environmental factors. Several studies have been reported on the response of PM-H⁺-ATPase to salt stress on the activity, mRNA expression level and translation level (Niu et al., 1993; Yang et al., 2004; Sibole et al., 2005). Niu et al. (1993) reported that the PM-H⁺-ATPase gene expression was induced by NaCl in roots and expanded leaves but not in stems or expanding leaves. Moreover, the PM-H⁺-ATPase gene expression in the halophyte Atriplex nummularia was more responsive to NaCl than in the glycophyte tobacco. Yang et al. (2004) found that the salt stress increased the PM-H⁺-ATPase activity in roots of salt-tolerant wheat L-Ch20, but reduced the PM-H⁺-ATPase activity in salt-sensitive wheat Y-J24. Similarly, Sibole et al. (2005) used two Medicago species to examine the relation between changes in leaf PM-H⁺-ATPase and ion partitioning differing in their response to NaCl. The increased expression of the PM-H⁺-ATPase was found in salt-stressed species. Transgenic approaches have recently been used to obtain a clearer understanding of the roles played by PM-H+-ATPase in the plant (Zhao et al., 2000; Vitart et al., 2001; Gévaudant et al., 2007). Over-expression of a plasma membrane H⁺-ATPase4 gene (PMA4) in tobacco yielded transformants that showed little difference in development under normal growth conditions. On the other hand, plants in which the endogenous and transgenic PMA4 were co-suppressed showed a severe phenotype (Zhao et al., 2000). A T-DNA insertion mutant in AHA4 (subfamily I) was characterized by a slight reduction in root and leaf growth and a high sensitivity to salt stress (Vitart et al., 2001). As to post-translational regulation of the PM-H⁺-ATPase, the best known mechanism described to date involves the auto-inhibitory action of the C-terminal domain (Palmgren et al., 1991; Johansson et al., 1993). To better understand the physiological consequence of this activation, Gévaudant et al. (2007) analyzed transgenic tobacco (Nicotiana tabacum) plants expressing either wild-type plasma membrane H⁺-ATPase4 (wtPMA4) or a PMA4 mutant lacking the auto-inhibitory domain (PMA4), generating a constitutively activated enzyme. Over-expression of the PMA4 resulted in greater in vivo proton pumping activity, increasing salt tolerance, and altered plant development, possibly related to cell expansion.

In our study, we isolated a plasma membrane H⁺-ATPase gene (named as ChvPMA) from a wild salt-tolerant plant Chloris virgata. C. virgata, also known as feather finger grass. It is one of the few species that can grow naturally on the alkali soils in Northeast Plain of China. Here, we reported the ChvPMA gene expression, intracellular localization, and the analyses of yeast and Arabidopsis thaliana plants that over-expressed either ChvPMA or ChvPMA lacking the last 103 residues (ChvPMAΔC), corresponding to the C-terminal autoinhibitory region.

1 Results
1.1 Sequence analyses and intracellular localization of ChvPMA
The full-length ChvPMA cDNA was directly obtained from the full-length cDNA library of Chloris virgata of our laboratory. The ChvPMA cDNA was 3 380 bp in length, including a complete open reading frame of 2 856 bp encoding a putative protein of 952 amino acids with a predicted protein molecular weight of 10 460 Da. The TMpred method predicted the ChvPMA protein has 10 transmembrane domains.

To investigate the intracellular localization of ChvPMA, we performed an in vivo targeting experiment that employed a ChvPMA-fused green fluorescent protein (GFP) as a fluorescent marker in a transient transfection assay using onion cells. As shown in Figure 1, control GFP was uniformly distributed throughout the onion epidermal cell, whereas the ChvPMA-GFP fusion protein was exclusively localized to the plasma membrane.

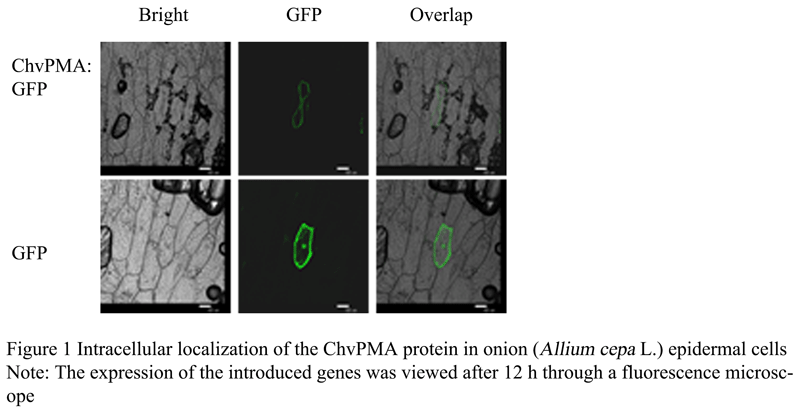

Figure 1 Intracellular localization of the ChvPMA protein in onion (Allium cepa L.) epidermal cells


1.2 Expression of ChvPMA gene is induced by salt stress
ChvPMA gene expression was induced by NaCl in both leaves and roots (Figure 2). In the presence of 200 mM NaCl, the expression of ChvPMA gene in root was strongly than that of in leaves. These data indicate that the expression of ChvPMA gene was in response to salt stress.

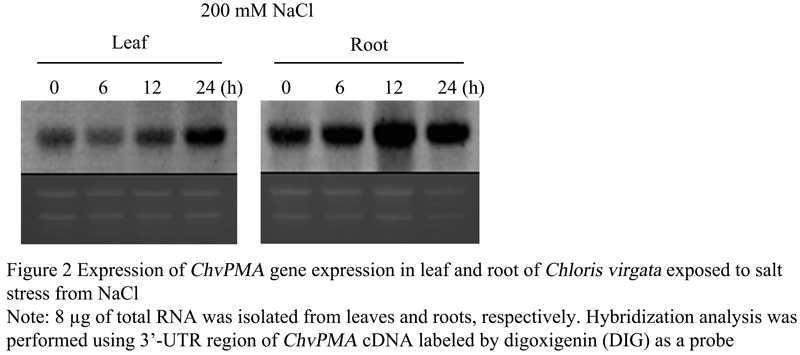

Figure 2 Expression of ChvPMA gene expression in leaf and root of Chloris virgata exposed to salt stress from NaCl


1.3 Expression of ChvPMA and ChvPMAΔC gene in yeast improves the tolerance to pH and salt stresses
Three transformed yeast lines were constructed. One was transformed with empty vector pYES2 as a control; the other two were transformed with vector containing either ChvPMA or ChvPMAΔC, respectively. A RNA gel blot analysis confirmed that ChvPMA and ChvPMAΔC were expressed in yeast, respectively (data not shown). In the presence of 2% glucose (control condition in Figure 3), as result of the gene expression was not induced, the growth of yeast cells transformed with ChvPMA or ChvPMAΔC was the same as that of the empty vector transformant. Under the pH condition (pH 4.0, pH 5.8, and pH 8.0), both ChvPMA and ChvPMAΔC yeast transformants showed much better growth than vector transformant along with the reducing pH (Figure 3). In the presence of NaCl at an external pH (pH 5.8 and pH 8.0), both ChvPMA and ChvPMAΔC yeast transformants were able to sustain the growth, whereas, the vector transformant grew not well or did not grow at all. In the presence of NaCl at an external pH 4.0, ChvPMAΔC transformant allowed faster growth than ChvPMA transformant (Figure 3).

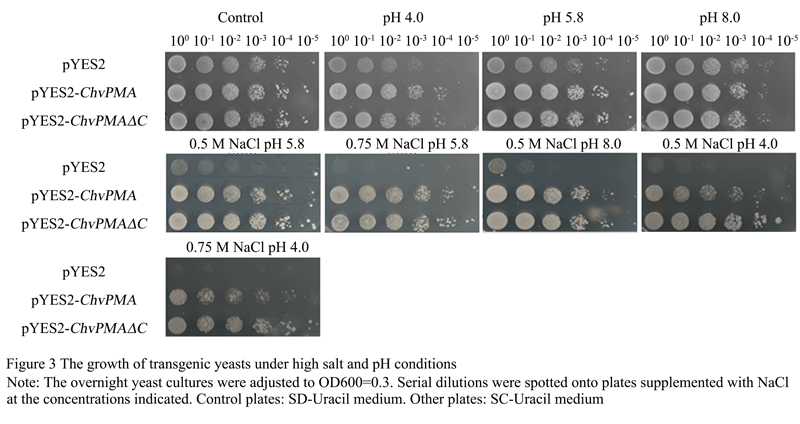

Figure 3 The growth of transgenic yeasts under high salt and pH conditions


1.4 Over-expression of ChvPMA and ChvPMAΔC gene in transgenic Arabidopsis improves the tolerance to pH and salt stresses
We generated Arabidopsis transgenic plants which over-expressed ChvPMA or ChvPMAΔC gene under the control of the strong constitutive CaMV35S promoter. Three independent T₃ generation lines transgenic lines of each gene were identified by RNA gel blot analysis. The results show that each of these lines expressed ChvPMA or ChvPMAΔC in plants.

Under pH 5.8 condition, the root length was not noticeably different between WT and two T₃ generation transgenic lines (#1 and #8) over-expressing ChvPMA or between WT and two T₃ generation transgenic lines (#4 and #9) over-expressing ChvPMAΔC (Figure 4B, C). In the presence of 100 mM NaCl at a pH of 5.8, the growth of roots was little stimulated in both of the ChvPMA and ChvPMAΔC transgenic lines. Under lower pH condition, the root growth of WT plants was significantly inhibited at external pH of 4.0 in presence of 100 mM NaCl or not (Figure 4B). Between the ChvPMA and ChvPMAΔC transgenic lines, the ChvPMAΔC transgenic lines exhibited a better tolerance at an external pH of 4.0, even on the MS media containing 100 mM NaCl at a pH of 4.0 (Figure 4B). Measurements confirmed that the root lengths of the ChvPMAΔC transgenic lines were a little higher than those of ChvPMA transgenic lines under lower pH condition (Figure 4C).

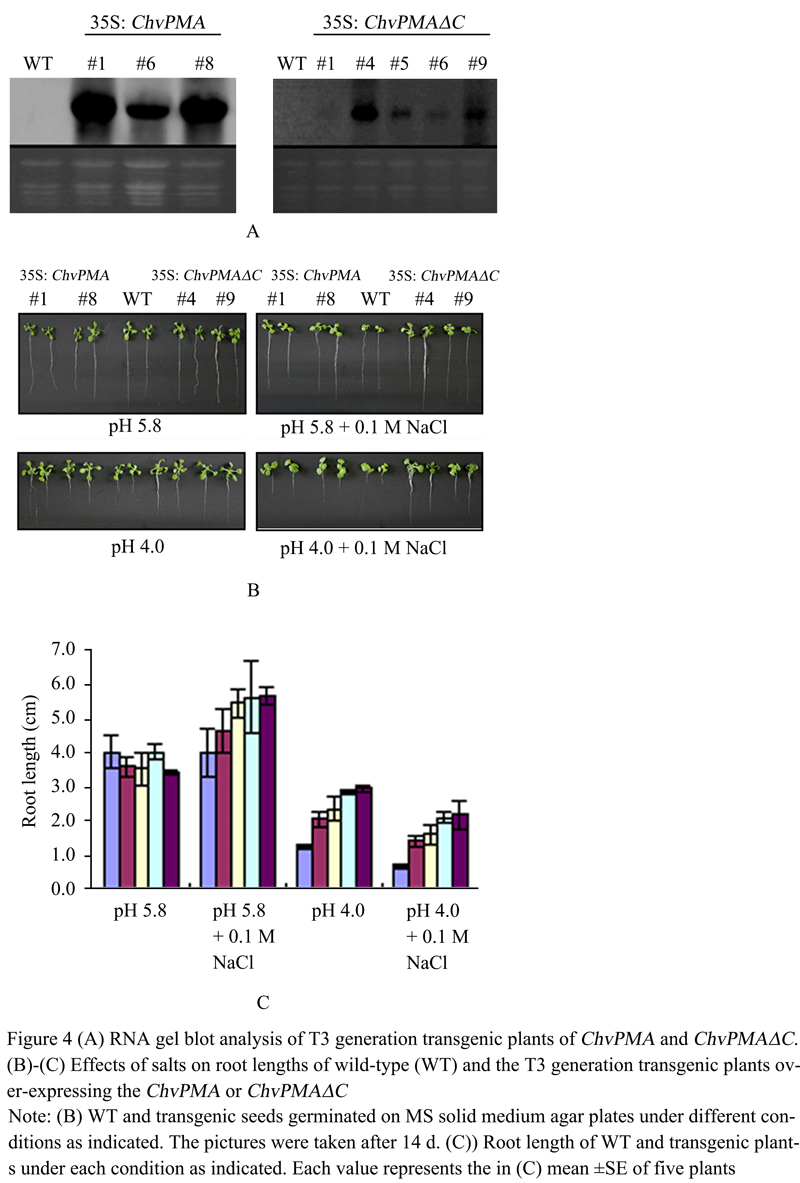

Figure 4 (A) RNA gel blot analysis of T3 generation transgenic plants of ChvPMA and ChvPMAΔC. (B)-(C) Effects of salts on root lengths of wild-type (WT) and the T3 generation transgenic plants over-expressing the ChvPMA or ChvPMAΔC


2 Discussion
Plasma membrane (PM) H⁺-ATPase plays a key role in the establishment and maintenance of cellular ion homeostasis. The proton and electrical gradient produced by PM H⁺-ATPase is the driving force for active secondary transport and the regulation of Na⁺ and Cl^- uptake (Arango et al., 2003). Multiple genes encoding PM H⁺-ATPase have been cloned in many plants such as tomato (Mito et al., 1996), Arabidopsis thaliana (Harper et al., 1994), rice (Zhang et al., 1999) and Nicotiana plumbaginifolia (Moriau et al., 1993).

In our study, we cloned a PM H⁺-ATPase gene (ChvPMA) from a wild salt-tolerant plant Chloris virgata. The expression of ChvPMA gene was investigated in the leaves and roots of C. virgata under salt stresses from NaCl (Figure 2). Our results showed that NaCl induced higher ChvPMA mRNA accumulation in the roots of C. virgata. In line with our current results, message accumulation of the PM H⁺-ATPase gene in roots was also greater in the halophyte Atriplex nummularia than that in glycophyte tobacco (Niu et al., 1993). In A. nummularia, the H⁺-pump message was mainly localized in the epidermis and endodermis of the root, and the bundle-sheath cells in expanded leaves (Niu et al., 1996). A rice PM H⁺-ATPase gene (OSA3) was also expressed at a high level in the root of a salt-tolerant mutant rice M-20 (Zhang et al., 1999). Therefore, the higher expression of the PM H⁺-ATPase gene in root indicated that a requirement for this pump in these organs during salt adaptation.

Enzymatic regulation of PM H⁺-ATPase has been well documented following the identification of an auto-inhibitory domain in its C-terminal region that keeps enzyme activity at a low level (Palmgren et al., 1991) The PM H⁺-ATPase can be stimulated by displacement of the auto-inhibitory domain upon phosphorylation of the penultimate residue, a Thr, and the subsequent binding of 14-3-3 regulatory proteins (Camoni et al., 2000). We designed a constitutively activated ChvPMA isoform (ChvPMAΔC) by deleting the entire C-terminal region. Expression in yeast showed that the ChvPMAΔC conferred better growth to yeast cells than the full-length form in the presence of NaCl at an external pH 4.0 (Figure 3). Similar results were also obtained from the transgenic plants over-expressing ChvPMAΔC which showed better root growth than the full-length form at an external pH 4.0 condition (Figure 4). In line with our current results, a previous report showed that the Arabidopsis transgenic plants expressing the AHA3 isoform activated by deletion within its inhibitory C-terminal region showed reduced growth inhibition when seedlings were grown in vitro at a pH below 5.0 (Young et al., 1998). Another report also showed the transgenic tobacco over-expressing a truncated PMA4 (ΔPMA4) displayed increased salt tolerance during germination and seedling growth compared with WT plants and transgenic tobacco over-expressing wtPMA4 (Gévaudant et al., 2007). Taken together, our results suggest that over-expressing a constitutively activated PM H⁺-ATPase in transgenic plants can improve the low pH (pH 4.0) and salt tolerance, and the extracellular H⁺ promotes the salt tolerance of the transgenic plants overexpressing an activated PM H⁺-ATPase (Wang et al., 2014). Therefore, we thought that expression of an activated H⁺-ATPase is an interesting solution for improving salt tolerance of plants. In the future study, how the H⁺-ATPase activity was regulated by the ChvPMA and ChvPMAΔC in transgenic plants will be investigated, which is helpful to explain the why the transgenic plants over-expressing ChvPMAΔC exhibited the better salt tolerance.

3 Materials and methods
3.1 Plant materials, growth condition and stress treatments
Seeds of Chloris virgata Swartz (C. virgata) were collected in the alkaline soil area located in northeast China. The seed was sterilized with 1% (v/v) Plant Preservative Mixture (Plant Cell Technology, USA) for 24 h. Plants were grown in hydroponic culture at 28℃ with a 16 h photoperiod as described by Nishiuchi et al. (2007). 14-day-old seedlings were transferred to the hydroponic solution containing 200 mM NaCl, incubated at 28℃ and sampled at 0 h, 6 h, 12 h, or 24 h. When leaves and roots were harvested, dropped immediately into liquid nitrogen and stored at -80℃ for RNA extraction.

3.2 RNA isolation and gel blot analysis
Plant total RNA was isolated from leaves and roots using Trizol reagent (Invitrogen) according to manufacturer’s instructions. 8 μg plant total RNA was separated on denaturing formaldehyde 1.0% agarose gel, and blotted onto a nylon membrane. Hybridization analysis was performed using 3’-UTR region of ChvPMA cDNA labeled by digoxigenin (DIG) as a probe. Hybridization signals were detected with CDP-Star (GE Healthcare) using the FujiFilm LAS-1000plus.

3.3 Intracellular localization of ChvPMA
Green fluorescent protein (GFP) cDNA was fused in-frame to the 3’-end of the full-length ChvPMA coding region. Transient expressions of GFP and GFP fusion constructs were performed by introducing the resultant DNAs into onion (Allium cepa L.) epidermal cells using the particle bombardment method, according to the manufacturer’s protocol (Bio-Rad). Fluorescent photographs of onion cells were captured through a fluorescence microscope (Nikon, Japan).

3.4 Media, yeast strain, transformation and stress treatment
The pYES2 vector (Clontech) driven by the GAL1 promoter was introduced for inducible expression of recombinant proteins in yeast. High level expression of the fusion protein was induced by galactose and repressed by glucose. The full-length ChvPMA and truncated ChvPMAΔC cDNA was ligated into the BamHI/SphI sites in pYES2 to construct the plasmid pYES2-ChvPMA and pYES2-ChvPMAΔC, respectively. The plasmid pYES2-ChvPMA, pYES2-ChvPMAΔC and pYES2 empty vector were introduced into Saccharomyces cerevisiae strain BY22740 (Osaka University, Japan), in which the original plasma membrane ATPase (PMA1) was deleted. Yeast cells were grown in two types of medium based on basic medium (6.7 g/L yeast nitrogen base+67 mg/L -Uracil Do Supplement). Yeast cells containing pYES2-ChvPMA, pYES2-ChvPMAΔC and pYES2 vector were incubated in SD-Uracil medium (basic medium+2% glucose, pH 5.8) at 30℃. The overnight cultures were adjusted to OD600 at 0.3, and diluted to 10-, 100-, 1000-, 10000-fold with appropriate basic medium, and then 10 µL of each dilution series were spotted on SC-Uracil solid medium (basic medium+1.94% galactose+0.06% glucose+2% agar, pH 4.0, 5.8 or 8.0), supplemented with the different concentrations of NaCl indicated in each case. Yeast growth was monitored for 5 d.

3.5 Transformation of Arabidopsis and stress tolerance assays of the transgenic plants
The full-length of ChvPMA and truncated ChvPMAΔC were subcloned into the plant transformation binary vector pBI121 (Clontech) under the control of a CaMV35S promoter with nptII as the selectable marker, respectively. The construct was introduced into Agrobacterium tumefaciens strain EHA105. Arabidopsis was transformed by the floral dip method (Clough and Bent, 1998). The expression of ChvPMA and ChvPMAΔC gene in transgenic Arabidopsis plants was evaluated by RNA gel blot, respectively.

For abiotic stress treatment, the wild type (WT) Arabidopsis and transgenic Arabidopsis seeds of ChvPMA or ChvPMAΔC gene was surfaced-sterilized with 70% ethanol for 1 min and 1% NaClO solution for 30 min. The seeds were then rinsed three times in sterile water, and sown on agar plates containing MS medium, 1% (w/v) sucrose, and 0.8% (w/v) agar for 12 d, and the seedlings were transferred to fresh media containing the indicated compounds. The plates were positioned vertically on shelves to compare root growth. Seedlings were allowed to growth for 21 d.

References
Arango M., Gévaudant F., Oufattole M., and Boutry M., 2003, The plasma membrane proton pump ATPase: the significance of gene subfamilies, Planta, 216: 355-365

Baxter I., Tchieu J., Sussman M.R., Boutry M., Palmgren M., Gribskov M., Harper JF., and Axelsen K.B., 2003, Genomic comparison of P-type ATPase ion pumps in Arabidopsis and rice, Plant Physiol, 132: 618-628
http://dx.doi.org/10.1104/pp.103.021923

Camoni L., Iori V., Marra M., and Aducci P., 2000, Phosphorylation-dependent interaction between plant plasma membrane H+-ATPase and 14-3-3 protein, J Biol Chem, 275: 9919-9923
http://dx.doi.org/10.1074/jbc.275.14.9919

Gévaudant F., Duby G., Stedingk E.V., Zhao R., Morsomme P., and Boutry M., 2007, Expression of a constitutively activated plasma membrane H+-ATPase alters plant development and increase salt tolerance, Plant Physiol, 144: 1763-1776
http://dx.doi.org/10.1104/pp.107.103762

Harper J.F., Manney L., and Sussman, M.R., 1994, The plasma membrane H+-ATPase gene family in Arabidopsis: Genomic sequence of AHA10 which is expressed primarily in developing seeds, Mol Gen Genet, 244: 572-587
http://dx.doi.org/10.1007/BF00282747

Johansson F., Sommarin M., and Larsson C.,1993, Fusicoccin activates the plasma membrane H+-ATPase by a mechanism involving the C-terminal inhibitory domain, Plant Cell, 5: 321-327

Michelet B., Lukaszewicz M., Dupriez V., and Boutry M., 1994, A plant plasma membrane proton-ATPase gene is regulated by development and environment and shows signs of a translational regulation, Plant Cell, 6: 1375-1389
http://dx.doi.org/10.1105/tpc.6.10.1375

Mito N., Wimmers L.E., and Bennett A.B., 1996, Sugar regulates mRNA abundance of H+-ATPase gene-family members in tomato, Plant Physiol, 112: 1229-1236
http://dx.doi.org/10.1104/pp.112.3.1229

Moriau L., Bogaerts P., Jonniaux J.L., and Boutry M., 1993, Identification and characterization of a second plasma membrane H+-ATPase gene subfamily in Nicotiana plumbaginifolia, Plant Mol Biol, 21: 955-963
http://dx.doi.org/10.1007/BF00023594

Moriau L., Michelet B., Bogaerts P., Lambert L., Michel A., Oufattole M., and Boutry M., 1999, Expression analysis of two gene subfamilies encoding the plasma membrane H+-ATPase in Nicotiana plumbaginifolia reveals the major transport functions of this enzyme, Plant J, 19: 31-41
http://dx.doi.org/10.1046/j.1365-313X.1999.00495.x

Nishiuchi S., Liu S.K., and Takano T., 2007, Isolation and characterization of a metallothionein-1 protein in Chloris virgata Swartz that enhances stress tolerances to oxidative, salinity and carbonate stress in Saccharomyces cerevisiae, Biotechnol Lett, 29: 1301-1305
http://dx.doi.org/10.1007/s10529-007-9396-4

Niu X., Narasimhan ML., Salzman RA., Bressan RA., and Hasegawa PM., 1993, NaCl regulation of plasma membrane H+-ATPase gene expression in a glycophyte and a halophyte, Plant Physiol, 103: 713-718
http://dx.doi.org/10.1104/pp.103.3.713

Oufattole M., Arango M., and Boutry M., 2000, Identification and expression analysis of three new Nicotiana plumbaginifolia genes which encode isoforms of a plasma membrane H+-ATPase and one of which is induced by mechanical stress, Planta, 210: 715-722.
http://dx.doi.org/10.1007/s004250050672

Palmgren M.G., Sommarin M., Serrano R., and Larsson C., 1991, Identification of an autoinhibitory domain in the C-terminal region of the plant plasma membrane H+-ATPase, J Biol Chem, 266: 20470-20475

Sibole J.V., Cabot C., Michalke W., Poschenrieder C., and Barceló J., 2005, Relationship between expression of the PM H+-ATPase, growth and ion partitioning in the leaves of salt-related Medicago species, Planta, 221: 557-566
http://dx.doi.org/10.1007/s00425-004-1456-6

Sondegaard T.E., Schulz A., and Palmgren M.G., 2004, Energization of transport processes in plants: roles of the plasma membrane H+-ATPase, Plant Physiol, 136: 2475-2482
http://dx.doi.org/10.1104/pp.104.048231

Vitart V., Baxter I., Doerner P., and Harper J.F., 2001, Evidence for a role in growth and salt resistance of a plasma membrane H+-ATPase in the root endodermis, Plant J, 27: 191-201
http://dx.doi.org/10.1046/j.1365-313x.2001.01081.x

Wang B.X., Sun B., Zhang X.X., Liu S.K., Tetsuo Takano and Bu Y.Y., 2014, Expression Analysis of Puccinellia tenuifolra Gene PutSTE24 and Response to Aluminium Stresses, Molecular Soil Biology, 5(2): 9-15

Yang Y.L., Guo J.K., Zhang F., Zhao L.Q., and Zhang L.X., 2004, NaCl induced changes of the H+-ATPase in root plasma membrane of two wheat cultivars, Plant Sci, 166: 913-918
http://dx.doi.org/10.1016/j.plantsci.2003.12.002

Young J.C., DeWitt N.D., and Sussman M.R., 1998, A transgene encoding a plasma membrane H+-ATPase that confers acid resistance in Arabidopsis thaliana seedlings, Genetics, 149: 501-507

Zhang J.S., Xie C., Li Z.Y., and Chen S.Y., 1999, Expression of the plasma membrane H+-ATPase gene in response to salt stress in a rice salt-tolerant mutant and its original variety, Theor Appl Genet, 99: 1006-1011
http://dx.doi.org/10.1007/s001220051408

Zhao R., Dielen V., Kinet J.M., and Boutry M., 2000, Cosuppression of a plasma membrane H+-ATPase isoform impairs sucrose translocation, stomatal opening, plant growth and male fertility, Plant Cell, 12: 535-546
